Products –VIC
FRP Bodies
A general purpose high cube dry freight van body, with added space as the primary advantage of the Fiberglass Reinforced Plywood construction. The absence of exterior seams and rivets provides an ideal surface for custom decals and painting. FRP is also very durable and dent resistant.
Basic descriptions
- Front wall and Side walls: 20mm FRP panel white in colour with 300mm gal kick panel.
- Led work light fitted in front or rear corner.
- Rear Doors: Double rear panel doors fitted with seals, 4 hinges and 1 heavy duty large camlock per door fitted with turn signs and door catches.
- 3mm steel chequer plate floor fitted over grade 450 high tensile 75x50x3mm RHS sub frame – cross bearers maximum 450mm apart
- Rear 100mm x 50mm RHS under-run bar with rubber dock • LED lights for all statutory side, front, rear outline marker lights, and licence plate lights • All compulsory mudguards, mudflaps, reflectors and marker plates to suit registration requirements.

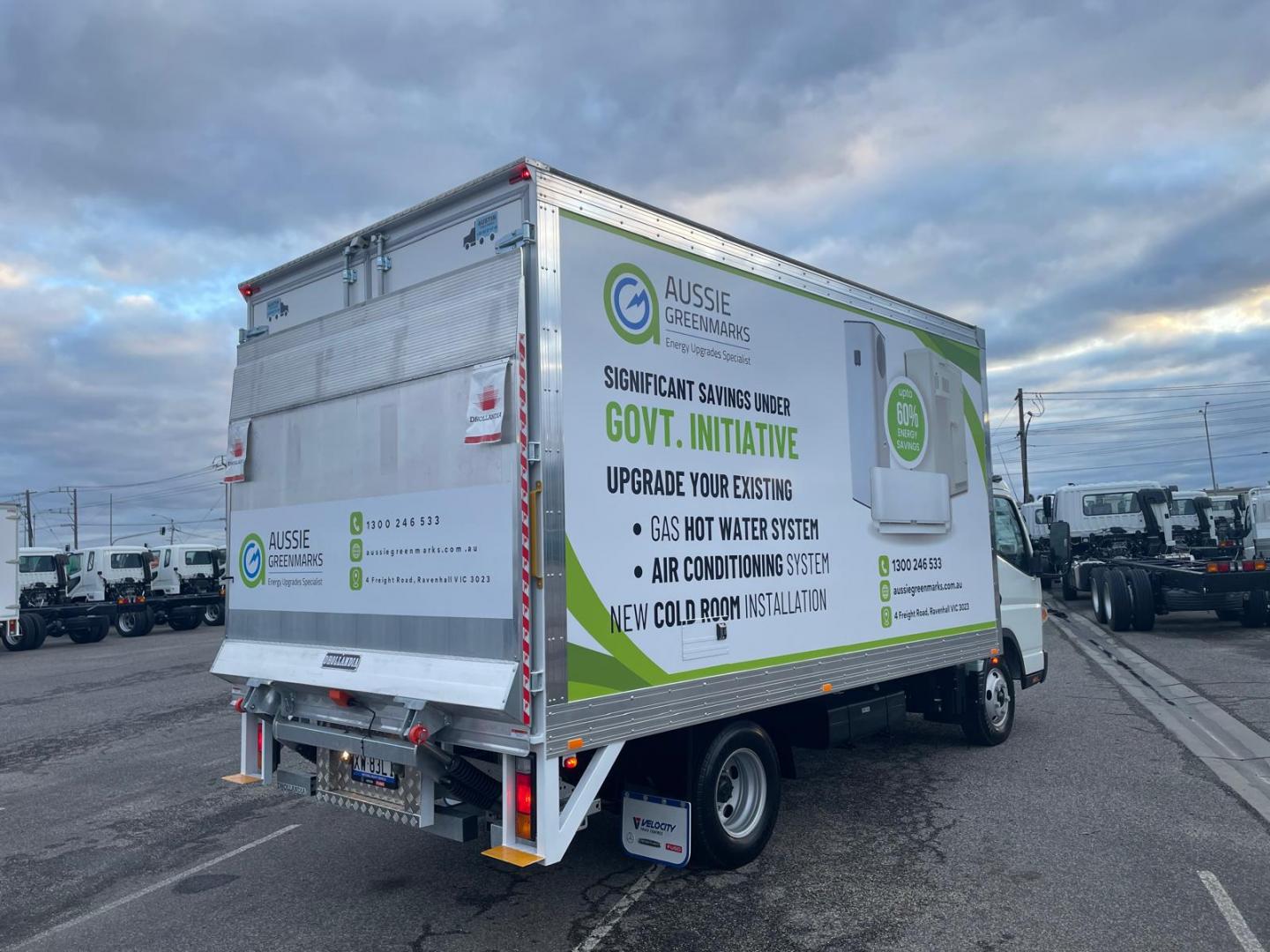

Colourbond Bodies
Basic descriptions

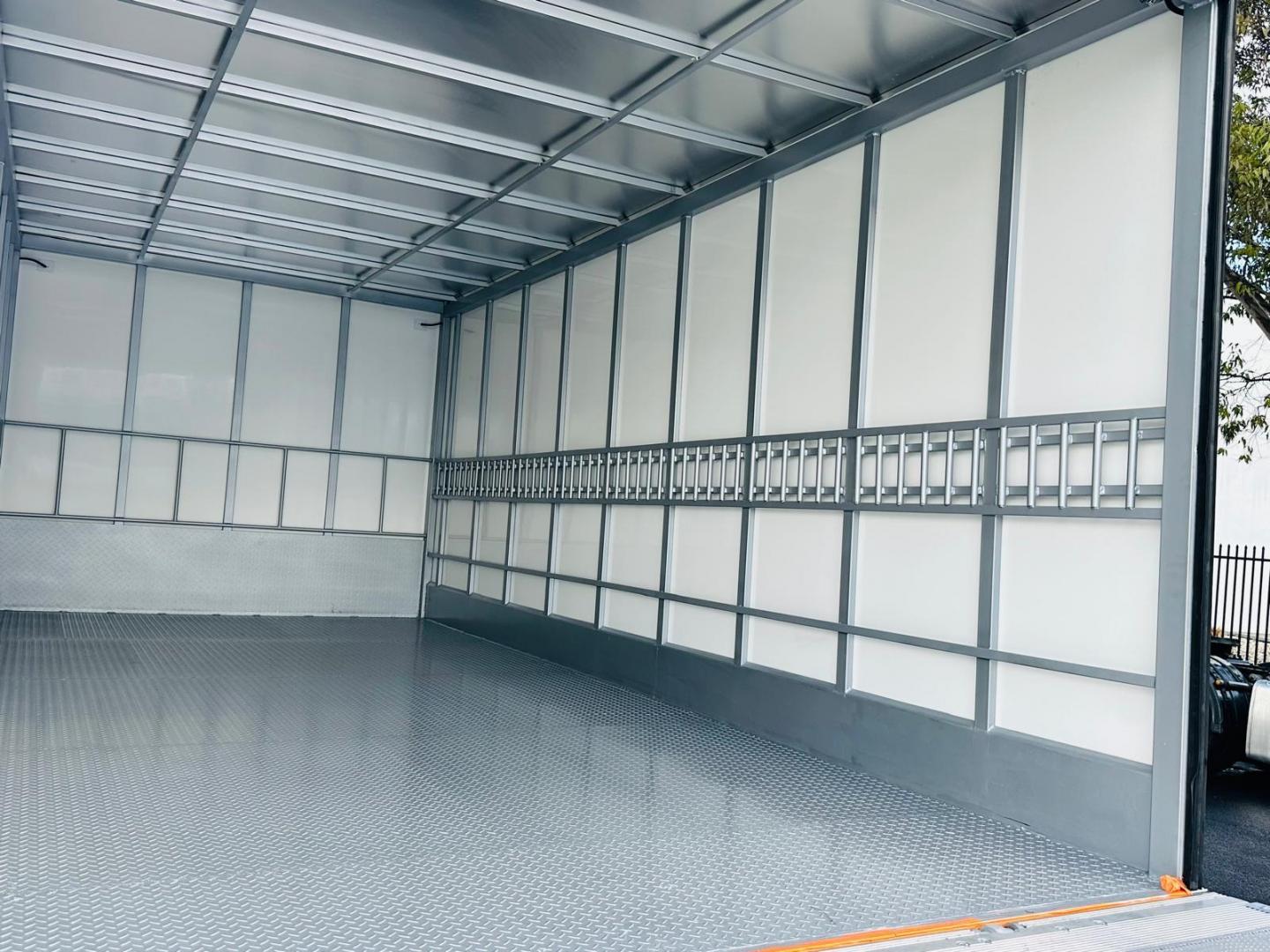

- Floor Frame: Heavy duty main runners fitted with 75mm x 50mm RHS cross bearers fitted at 450mm apart.
- Floor sheeting: 3mm to 5mm Checker plate or timber.
- Rear Frame: 75mm x 50mm RHS Fitted with under run bar & step or bump rubbers.
- Frame Work: 25mm x 50mm RHS tube fitted with 4 tie rails, 150mm high bottom kick panel.
- Roof Frame: Fully aluminium structured roof with Aluminium roof bows and a bonded pre-stressed 1 piece aluminium roof skin, keeps body weight to a minimum, giving you more payload.
- Rear Doors: Double rear FRP panel doors fitted with seals, 4 hinges and 1 heavy duty camlock per door fitted with door catches & smash panels.
- Work light fitted in rear corner
- LED lights for all statutory side, front, rear outline marker lights, and licence plate lights • All compulsory mudguards, mudflaps, reflectors and marker plates to suit registration requirements.

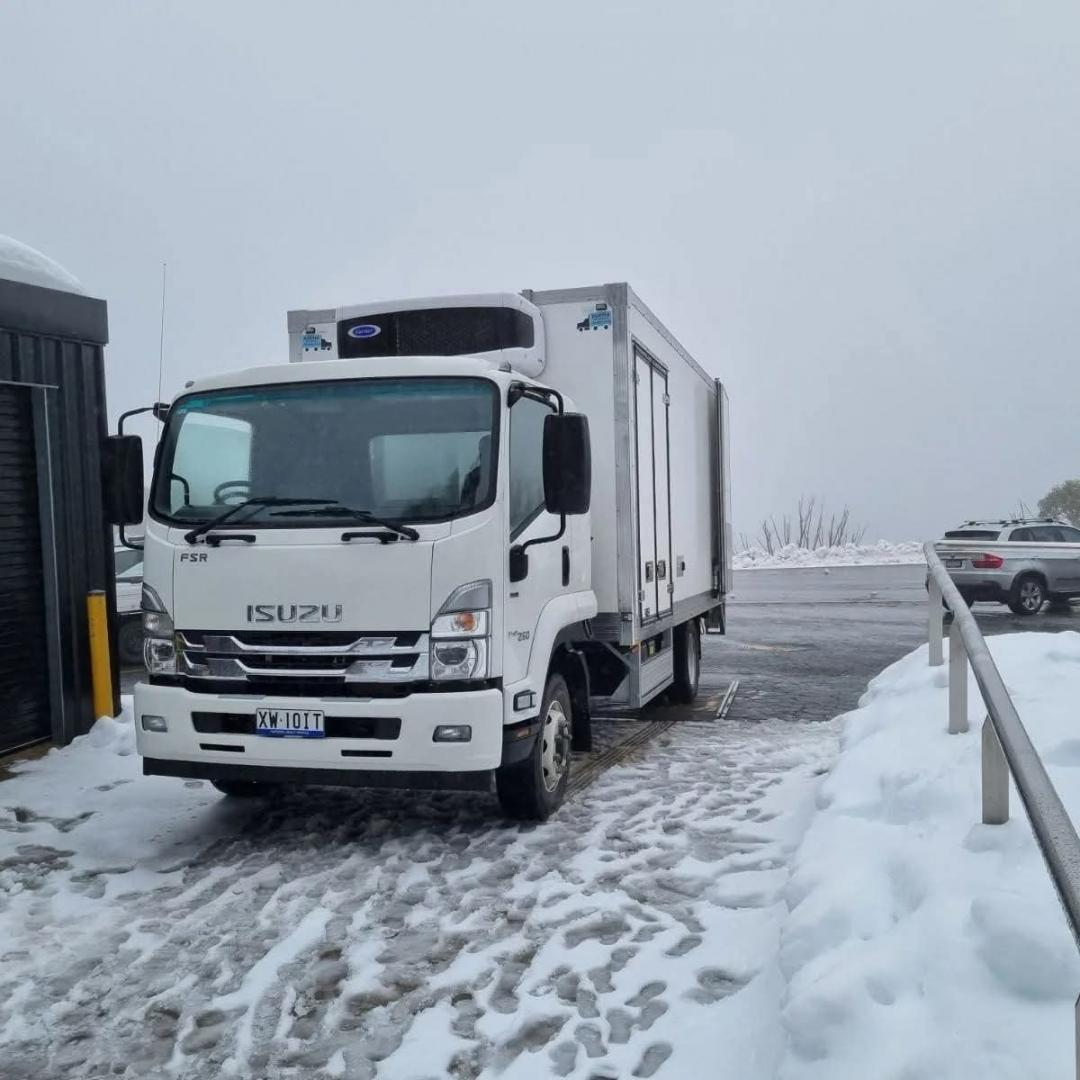

Insulated Truck Bodies
Austin Truck Bodies are experienced insulated Truck Body Builder specializing in the design & manufacture of light weight refrigerated transport bodies for the Meat, Seafood, Dairy, and the Frozen Food Industry.
Our refrigerated bodies are FRP One piece panels renowned for their superior insulating properties, rigidity, strength and light weight properties which keep the temperature inside the body from 0°C to -30°C.
Basic descriptions
- Front wall:100mm thick FRP one piece panel
- Side walls:45mm thick FRP one piece panel
- Roof:100mm tick FRP one piece panel
- Stainless steel rear back door frame
- 45mm thick FRP one piece panel doors with three hinges, seals and one camlock per door
- 3mm aluminium chequer plate OR non-slip fibreglass floor with 50mm insulation and 25 mm tick timber under a chequer plate
- Led work light fitted in roof panel
- Our exclusive polished aluminium top, bottom, and corner extrusions bonded and fastened to all panels, with heavy-duty cast aluminium corner caps
- LED lights for all statutory side, front, rear outline marker lights, and licence plate lights • All compulsory mudguards, mudflaps, reflectors and marker plates to suit registration requirements
- Body meets all SCARM 80 requirements and is certifiable for Transportation of Fresh Meat for Human Consumption.
